The Kraxcle C30-ssl is the newest Kraxcle model. This construction crane uses the superstructure of the 27 series, extended by 3 metres. The result: a 30-metre boom with a lower weight than the 30 series and a maximum lifting capacity of 2,500 kg. Also available as a 10-tonne-metre version.
Lease option possible
2 year warranty
Maintenance contract possible
NEWEST MODEL
The C30-ssl combines the compact superstructure of the 27 series with a 30-metre boom. This makes it lighter than the 30 series, with 600 kg lifting capacity at full reach.
BUILT-IN BATTERY PACK
Optionally available with a battery pack integrated in the frame: emission-free work without the pack getting in the way. Working on an external power supply remains possible.
AUTO-LEVELING AND UNDERCARRIAGE
Available with an auto-leveling system that levels the crane automatically, and with an extendable crawler undercarriage with outriggers.
specifications
self driving rapid build crane
Brand:
KRAXCLE C30-ssl
Maximum reach:
30 metres
Maximum lifting capacity:
2,500 kg
Lifting capacity:
600 kg (at 30 metres)
Weight:
26,500 kg
Counterweight:
9,000 kg
Power supply:
230/400V
Drive system:
Electric
Coating:
2 K
Power supply options:
Battery, generator or mains power
Control system:
Radio remote control
Undercarriage:
Self-propelled, crawler
The power and precision
van de KRAXCLE C30-ssl van de Bouwkraan
Wanneer u op zoek bent naar een bouwkraan die kracht, veelzijdigheid en precisie combineert, is de KRAXCLE C30-ssl de ideale keuze. Deze kraan biedt alles wat u nodig heeft om uw bouwproject soepel te laten verlopen.
27 SERIES SUPERSTRUCTURE, 30-METRE BOOM
The C30-ssl uses the proven superstructure of the 27 series, extended by 3 metres. This gives you a 30-metre boom with a lower own weight than the 30 series: 26,500 kg, with 9,000 kg of counterweight.
LIFTING CAPACITY UP TO 2,500 KG
The maximum lifting capacity of the C30-ssl is 2,500 kg. At the full reach of 30 metres the crane still lifts 600 kg. The C30-ssl is also available as a 10-tonne-metre version.
AUTO-LEVELING SYSTEM
The outriggers can optionally be fitted with an auto-leveling system. You no longer have to level the crane by hand by adjusting each outrigger separately: the system does this for you automatically.
BUILT-IN BATTERY PACK
Emission-free work is one of the key priorities of Kraxcle. The C30-ssl can be fitted with an integrated battery pack that is built into the frame and does not get in the way during work. Working with an external power supply remains possible.

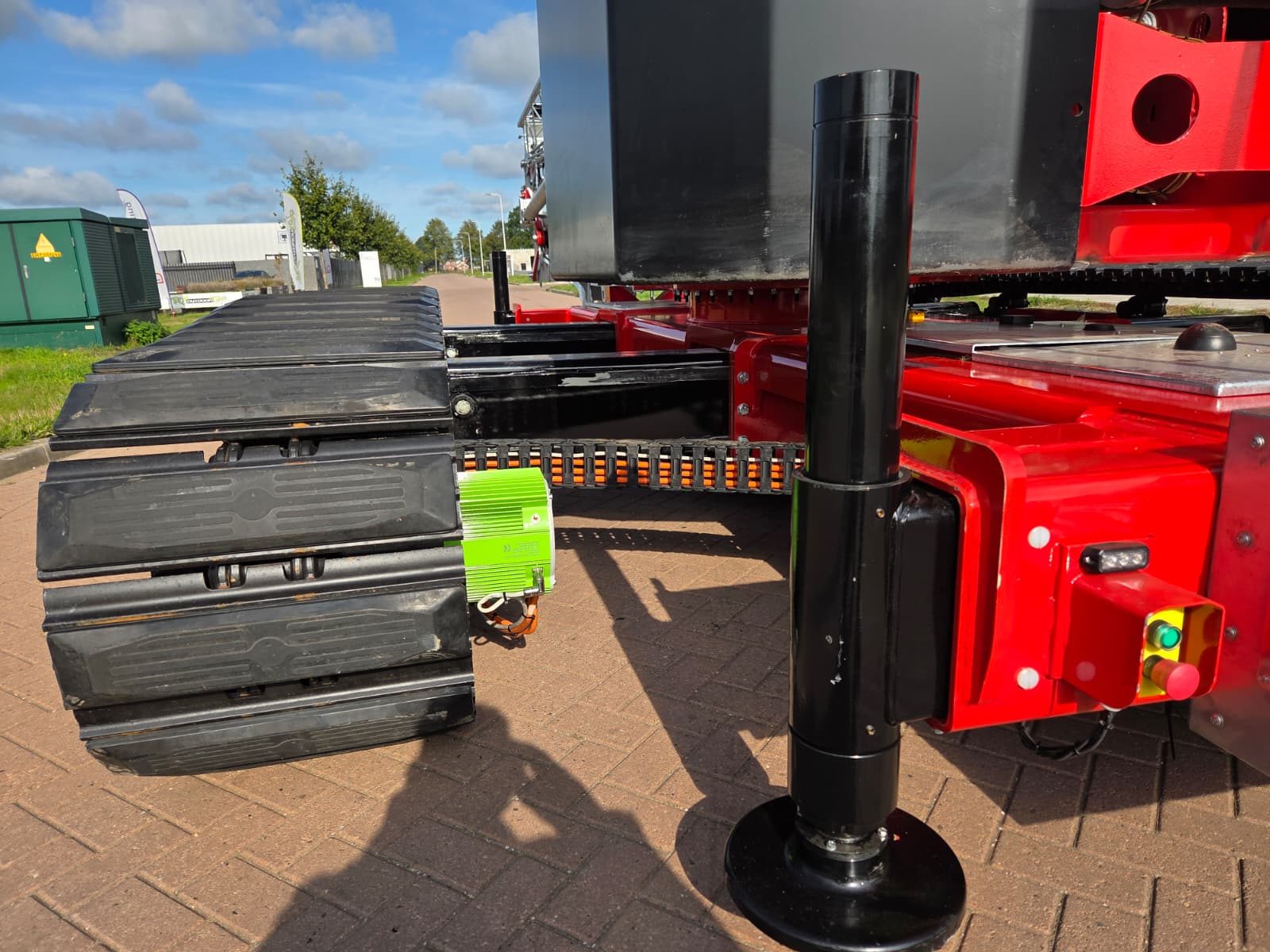

EXTENDABLE CRAWLER UNDERCARRIAGE WITH OUTRIGGERS
The C30-ssl can optionally be equipped with an extendable crawler undercarriage with outriggers, for a stable set-up on site.
REMOTE CONTROL WITH DISPLAY
The new remote control fits better in the hand, the controls are laid out more logically and it has a display. This keeps the most important data in view at all times.
100% ELECTRIC
Like all Kraxcle construction cranes, the C30-ssl is fully electric. The crane runs on mains power (230V or 400V), on a battery pack or on a generator, making it suitable for emission-free construction.
SAFETY
Safety comes first at Kraxcle. A solid construction, intuitive controls and smart safety systems ensure that the C30-ssl performs safely, even in demanding conditions.
