KRAXCLE C30-s

The Kraxcle C30 S delivers unmatched performance in a compact design. Move Free Lift Smart is not just a slogan — it is a promise we deliver on every construction site.

Lease option possible
2 year warranty
Maintenance contract possible

Precision and control

The Kraxcle C30-S offers maximum precision thanks to its independently controllable tracks, which allow the crane to be moved smoothly and accurately.

Excellent lifting capacity

The Kraxcle C30-S lifts up to 4,000 kg, even with the boom extended, and 1,000 kg at full boom length.

Ease of use and transport

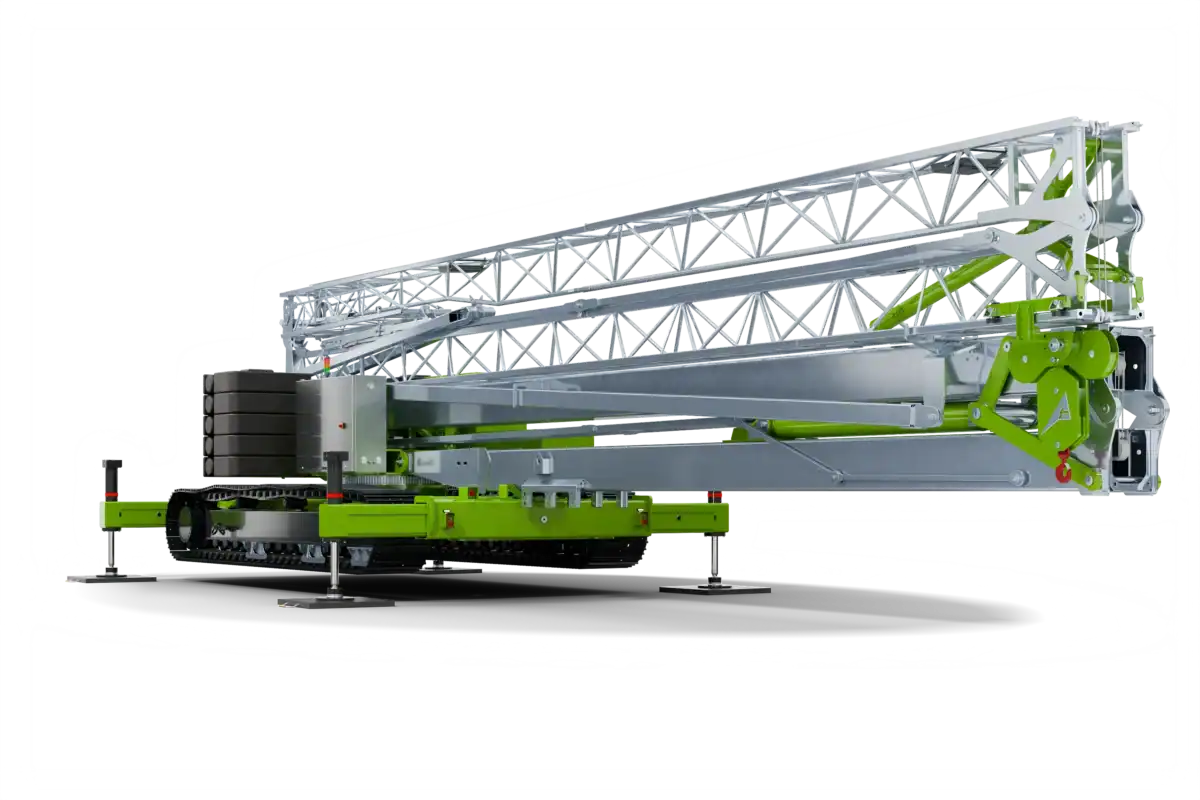

The Kraxcle C30-S is easy to operate, foldable, transportable and, with a transport height of 3.10 m, compact to transport and store without any loss of performance.

specifications

self driving rapid build crane

Brand:

KRAXCLE C30-S

Maximum reach:

30 meters

Maximum lifting capacity:

4,000 kg

Lifting capacity:

1,000 kg

Hook height:

23.4 meters

Outriggers:

Hydraulic

Power supply:

230 or 400 V

Drive system:

Electric

Coating:

Transport height:

3.10 meters

Power supply options:

Battery, generator or mains power

Afbeeldingen KRAXCLE C30-s

self driving rapid build crane

MECHANISM

motion, power and performance

Hoisting

Power supply

230 - 400 V · 50 Hz

Voltage

9.2 kW

230 V 400 V

Performance

1a — 3m/1’ - 2500 kg

2a — 11m/1’ - 2500 kg

3a — 21m/1’ - 1400 kg

4a — 38m/1’ - 600 kg

Prestaties

1a — 3m/1’ - 4000 kg

2a — 18m/1’ - 4000 kg

3a — 32m/1’ - 2500 kg

4a — 46m/1’ - 1400 kg

5a — 51m/1’ - 600 kg

TROLLEY

Power supply

230 - 400 V · 50 Hz

Voltage

3 kW

Performance

1a — 20m/1’

2a — 30m/1’

3a — 45m/1’

ROTATE

Power supply

230 - 400 V · 50 Hz

Voltage

2.2 kgm

Performance

1a — 0 -> 0.14

2a — 0.14 -> 0.45

3a — 0.45 -> 0.93

The power and precision

van de KRAXCLE C30-s van de Bouwkraan

Wanneer u op zoek bent naar een bouwkraan die kracht, veelzijdigheid en precisie combineert, is de KRAXCLE C30-s de ideale keuze. Deze kraan biedt alles wat u nodig heeft om uw bouwproject soepel te laten verlopen.

MAXIMUM PRECISION IN MOVEMENTS

The Kraxcle C30-S offers stepless control for maximum precision. Driving and turning can be done at variable speeds, providing extra flexibility and ease of use.

TRACK TIRES SUITABLE FOR ANY TERRAIN

Thanks to its caterpillar tracks, the Kraxcle C30-S works on both soft and hard surfaces, offering maximum versatility on any construction site.

IMPRESSIVE LIFTING CAPACITY AND REACH

The Kraxcle C30-S lifts up to 4,000 kg and continues to perform at long ranges: at 30 metres, it can still lift 1,000 kg.

FLEXIBLE HOOK HEIGHT

The Kraxcle C30-S has a standard hook height of 23.4 m, extendable to 31.8 m with a 30° topped boom, making it suitable for both low and high construction projects.

SUSTAINABLE ELECTRIC DRIVE

The Kraxcle C30-S is 100% electric, easy to connect to 230V and can be used at 3kW, 4.5kW, 6kW or 14kW, ideal for various tasks.

STABLE AND COMPACT DESIGN

Hydraulically extendable outriggers provide optimum stability, with a compact footprint of 4.2 × 6 m for easy placement on tight construction sites.

BATTERY PACK

Our electric construction cranes also operate without mains power thanks to interchangeable battery packs, ideal for emission-free projects and the most stringent sustainability standards.

SAFETY

The C30-S can be set up in 7 minutes using hydraulic outriggers and combines solid construction, intuitive operation and smart safety features for maximum reliability.

load chart

KRAXCLE C30-s Bouwkraan

lable	1	2	3	4	5	6	7	8	9	10	11	12	13	14	15	16	17	18
m	3.2	5	8	10.1	11	12	12.6	14.5	15	15	18	20	21.8	22	24	26	28	30
kg	2500	2500	2500	2500	2500	2500	2500	2500	2405	2000	1910	1673	1500	1484	1330	1201	1093	1000
kg	4000	4000	4000	4000	3590	3203	3000	2500	2405	2000	1910	1673	1500	1484	1330	1201	1093	1000

lable	1	2	3	4	5	6	7	8	9	10	11	12	13	14	15	16	17	18
	3.2	5	8	10	12	14	16	17.1	18	19	20	21	21.5	22	24	26	28	30
	2000	2000	2000	2000	2000	2000	2000	2000	1882	1759	1649	1550	1500	1462	1310	1183	1076	1000

lable	1	2	3	4	5	6	7	8	9	10	11	12	13	14	15	16	17	18
m	3.4	5	10	15	20	25	29
kg	1000	1000	1000	1000	1000	1000	1000

lable	1	2	3	4	5	6	7	8	9	10	11	12	13
m	3.4	5	10	15	20	25	28.2
kg	1000	1000	1000	1000	1000	1000	1000
