KRAXCLE C24

KRAXCLE C24

If you are looking for a construction crane that combines power, versatility and precision, the Kraxcle C24 is the ideal choice. This crane offers everything you need to ensure your construction project runs smoothly.

  • Lease option possible
  • 2 year warranty
  • Maintenance contract possible
2
Optional with generator
Change company colour
Rack with plastic stamp plates
Plastic pads on tracks
Top function 30°
Battery pack

PRECISION AND CONTROL

The Kraxcle C24's controls are designed for ultimate precision and control. With the ability to operate the tracks independently of each other, the crane can be moved smoothly and accurately.

BATTERY PACK

A unique feature of our electric construction cranes is their ability to operate without a direct power supply. This is made possible by the various battery packs we offer. This makes our construction cranes ideal for construction projects that focus on emission-free building and meet the strictest sustainability standards.

EXCELLENT LIFTING CAPACITY

The Kraxcle C24 stands out thanks to its impressive lifting capacity of 2,000 kg, even with the boom in its highest position. It can also still effortlessly lift 750 kg at its full boom length.

specifications

self driving rapid build crane

Brand:
KRAXCLE C24
Maximum reach:
24 meters
Maximum lifting capacity:
2,000 kg
Lifting capacity:
750 kg
Hook height:
19.1 meter
Power supply:
230/400V
Drive system:
Electric
Coating:
2 K
Transport height:
3.10 Meter
Power supply options:
Battery, generator or mains power
Control system:
Radio controlled
Undercarriage:
Self driving, crawler

Afbeeldingen KRAXCLE C24

self driving rapid build crane

MECHANISM

motion, power and performance

Hoisting

Power supply
230 - 400 V · 50 Hz
Voltage
9.2 kW
230 V 400 V
Performance
1a — 4m/1' up 2000 kg
2a — 12m/1' up 2000 kg
2a — 12m/1' up 2000 kg
Prestaties
1a — 4m/1' up 2000 kg
2a — 24m/1' up 2000 kg
3a — 37m/1' up 2000 kg
4a — 46m/1' up 2000 kg

TROLLEY

Power supply
230 - 400 V · 50 Hz
Voltage
2.2 kW
Performance
1a — 19m/1’
2a — 30m/1’
3a — 54m/1’

ROTATE

Power supply
230 - 400 V · 50 Hz
Voltage
2.2 kW
Performance
1a — 0 -> 0.15
2a — 0.15 -> 0.60
3a — 0.60 -> 0.85

The power and precision

van de KRAXCLE C24 van de Bouwkraan

Wanneer u op zoek bent naar een bouwkraan die kracht, veelzijdigheid en precisie combineert, is de KRAXCLE C24 de ideale keuze. Deze kraan biedt alles wat u nodig heeft om uw bouwproject soepel te laten verlopen.

IMPRESSIVE LIFTING CAPACITY AND REACH

The Kraxcle C24 has a maximum lifting capacity of no less than 2,000 kg, making the crane ideal for heavy-duty tasks on construction sites. In addition, this crane is designed to deliver excellent performance even at long reaches. At a reach of 24 metres, the Kraxcle C24 can still lift 750 kg.

FLEXIBLE HOOK HEIGHT

The standard hook height of the Kraxcle C24 is 19.1 metres, ideal for many applications on the construction site. For extra flexibility, the boom can be topped up at an angle of 30 degrees, achieving a maximum hook height of 29.8 metres. This makes the crane suitable for both lower and higher construction projects.

SUSTAINABLE ELECTRIC DRIVE

At Kraxcle, we consciously choose 100% electric construction cranes. The Kraxcle C24 is easy to connect to a standard 230V connection, but the construction crane can also be connected to a 400V connection. The crane can operate at different power levels – 3kW and 12kW. This versatility makes the Kraxcle C24 suitable for a wide range of tasks.

MAXIMUM PRECISION IN MOVEMENTS

One of the most distinctive features of the Kraxcle C24 is the stepless control of all movements. This means that you can operate the crane with extreme precision, which is essential for accurate lifting work. The crane can also be driven and rotated at different speeds, further increasing its flexibility and user-friendliness.

TRACKS SUITABLE FOR ANY SURFACE

The caterpillar tracks ensure that the construction crane can operate on any surface and on any terrain. This makes the Kraxcle C24 suitable for use on both soft and hard surfaces, giving the crane maximum versatility on different construction sites.

EASE OF USE AND TRANSPORT

Operating the crane is a piece of cake thanks to the advanced remote control, which can be used to control both rotation and travel. What makes our crawler cranes truly unique is the ability to move the crane while assembled. This means you don't lose time dismantling and reassembling when you need the crane at a new location. This not only increases your productivity, but also your flexibility on the construction site. In addition, our crane offers a unique transport height of only 3.10 metres. This compact design makes transport and storage easier than ever, without compromising on performance.

SAFETY

Safety is paramount at Kraxcle. Our construction cranes are designed with both ease of use and safety in mind. Every detail has been carefully thought out to minimise risks. Whether it's solid construction, intuitive controls or smart safety systems, our cranes are built to perform in the most demanding conditions without compromising on safety. Together, we are building a safe and successful future.

CONCLUSION: THE PERFECT CONSTRUCTION CRANE

The Kraxcle C24 combines power, flexibility, durability and precision in one compact machine. With impressive lifting capacity, flexible reach and environmentally friendly electric drive, this construction crane is the perfect choice for any construction site. Thanks to its simple operation and versatile applications, the Kraxcle C24 is not only a practical investment, but also a future-proof one. Contact us today and discover how the Kraxcle C24 can take your construction project to the next level!

load chart

KRAXCLE C24 Bouwkraan

lable123456789101112131415161718
m2.1510.511121315171921222324
kg20002000200019071720156513211138996883834790750
lable123456789101112131415161718
m2.1579111315171920212222.9
kg700700700700700700700700700700700700700
lable12345678910111213
m2.1579111315161718192020.8
kg600600600600600600600600600600600600600
lable12345678910111213
m2.1579.4111315161718192020.8
kg20002000200020001790146212291055919863811765750

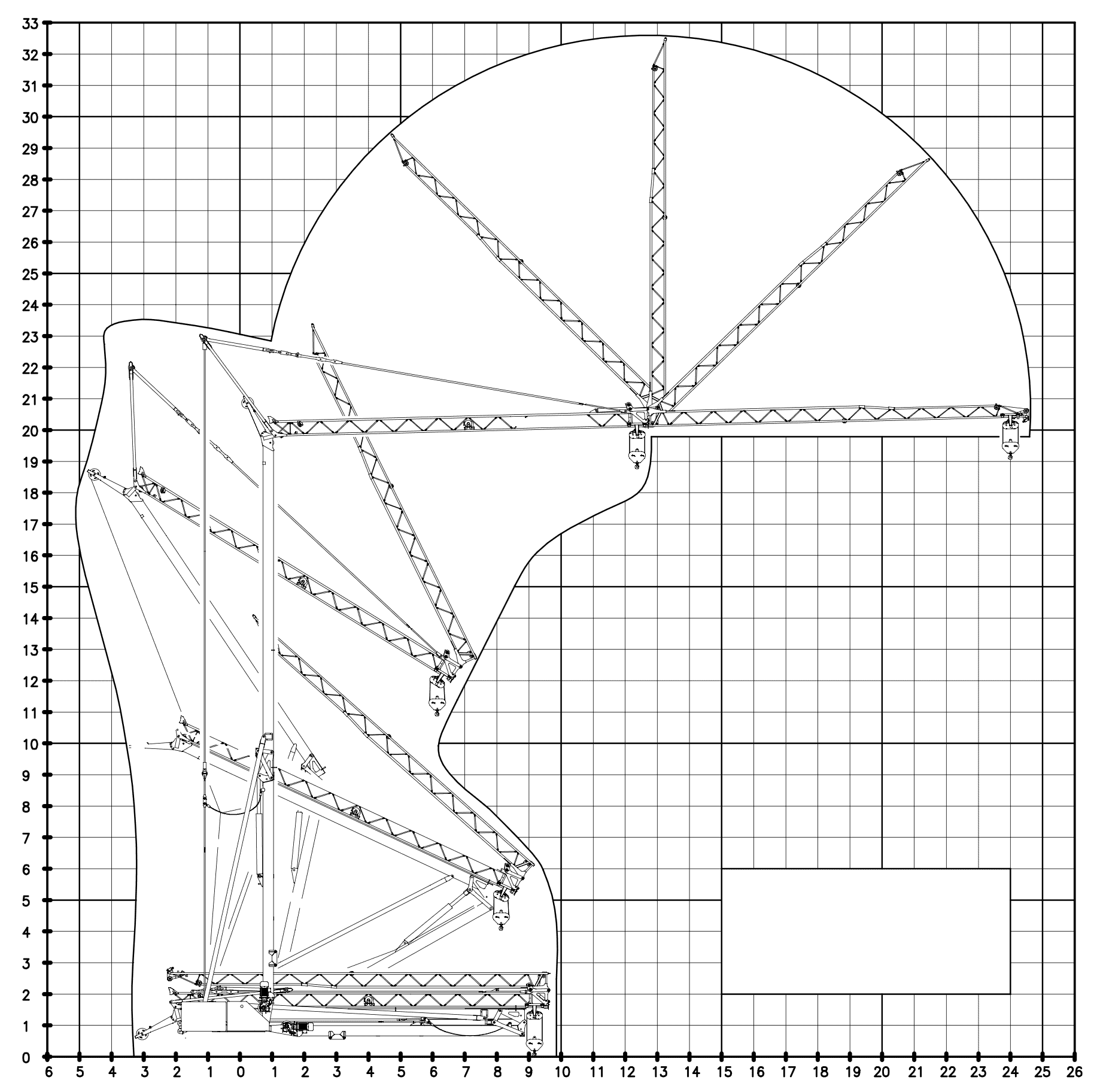

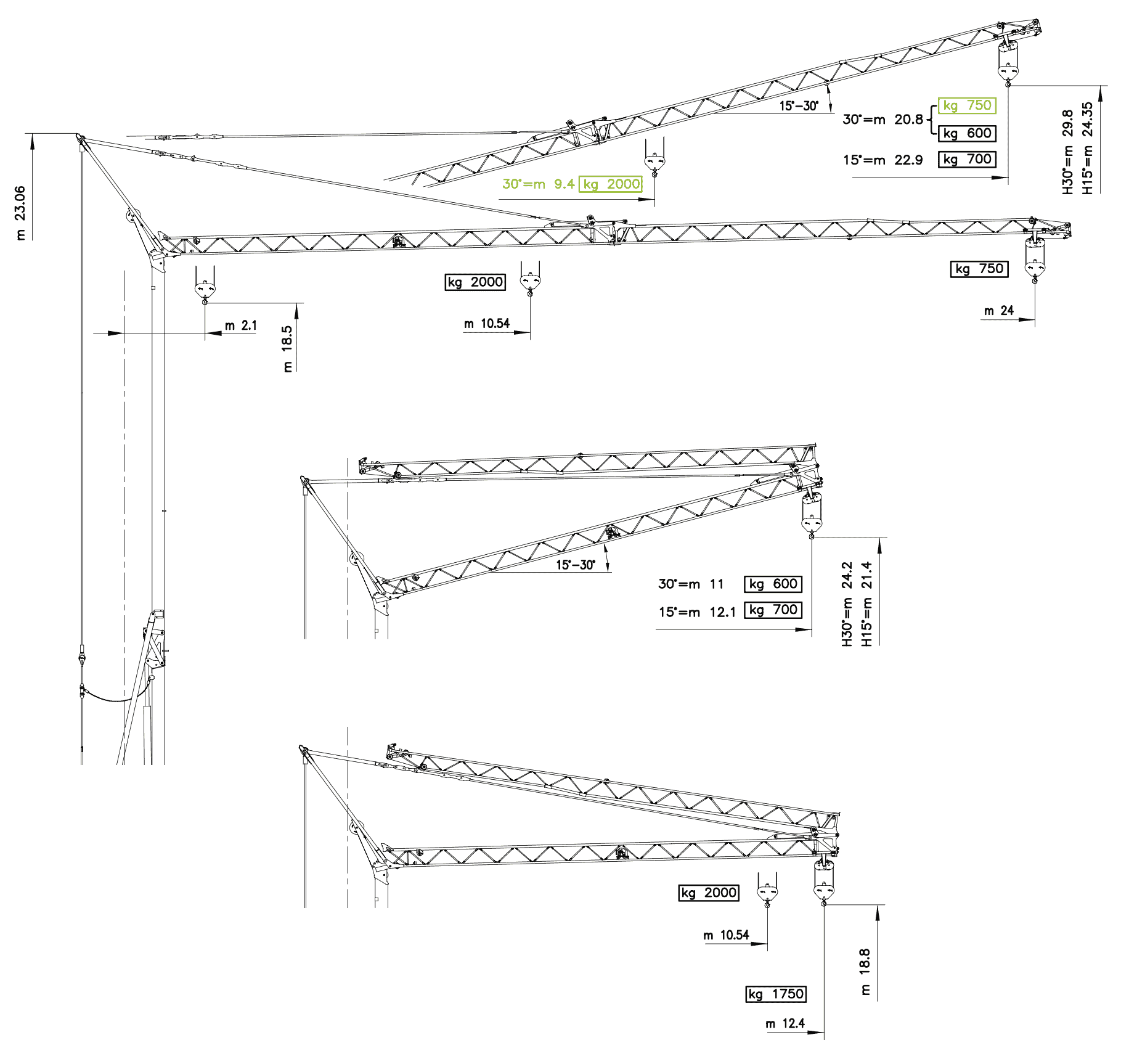

Technical drawings

KRAXCLE C24 Bouwkraan

Product documentation

download KRAXCLE C24 PDF

Download
